Description
A column consists of a shaft with a capital and base. When selecting the column height, please be aware that the height includes the capital and base.
Our pultruded columns are a cost conscious alternative to our fiberglass columns, made of a thinner yet still robust material. These columns are suitable for use in outdoor or indoor applications, and are best used in applications where they will be painted.
We sell Royal Corinthian Columns. Royal Corinthian has over 25 years experience in the manufacture of industry specified Fiberglass/FRP columns, previously reserved only for large commercial or residential specification. Royal Corinthian is a leader in quality through reputation, providing a long lasting, sturdy option to the standard “boutique” variety columns available elsewhere. Crown-Molding.com is very pleased to be one of the few online retail stores permitted to offer the Royal Corinthian line.
Load-Bearing capacity is dependent on distributing the load evenly over bearing surfaces of the shaft. All installation information is of general nature; columns should be installed and secured according to standard construction practices and in compliance with local regulations. 2nd story balconies should not be attached directly to the side of any column.

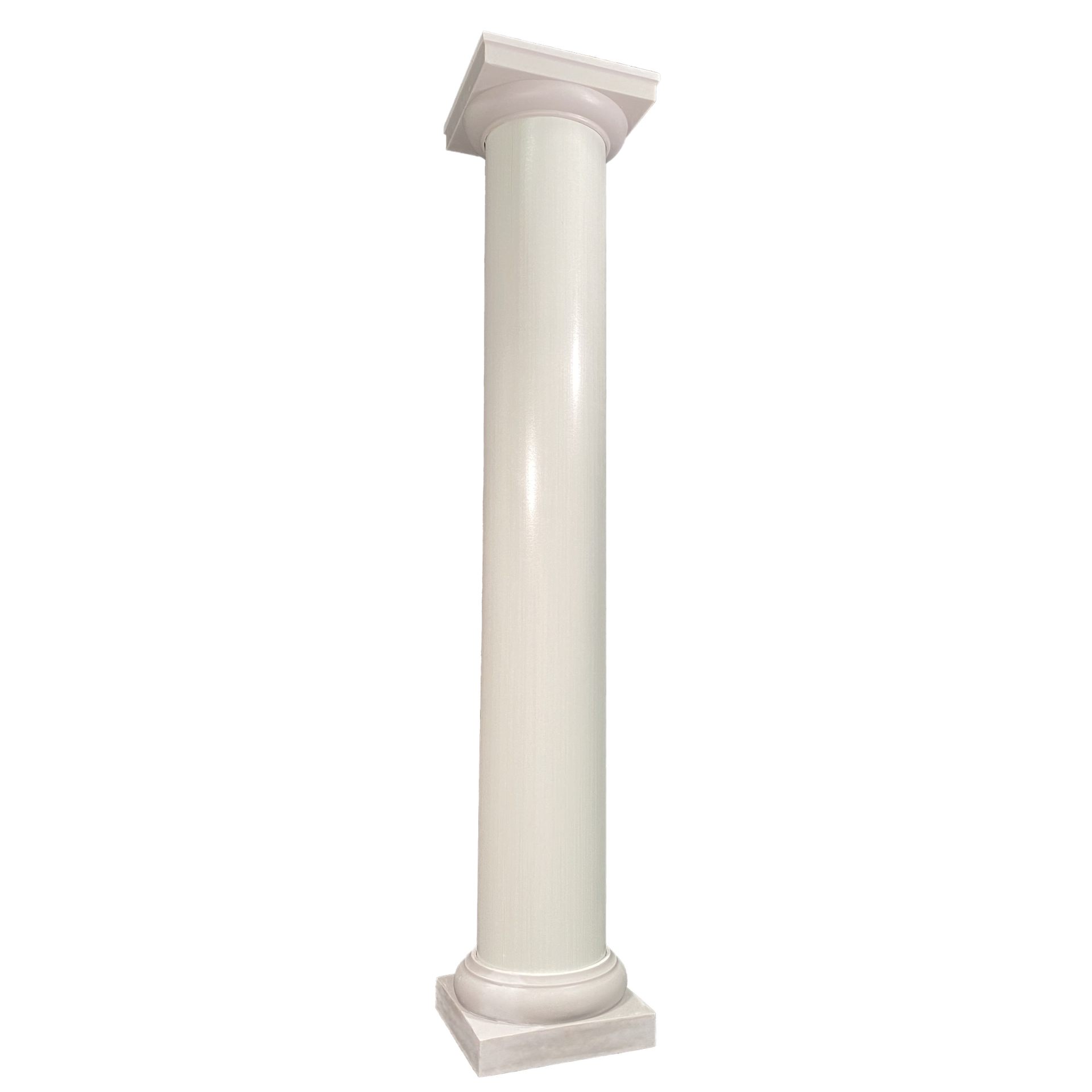

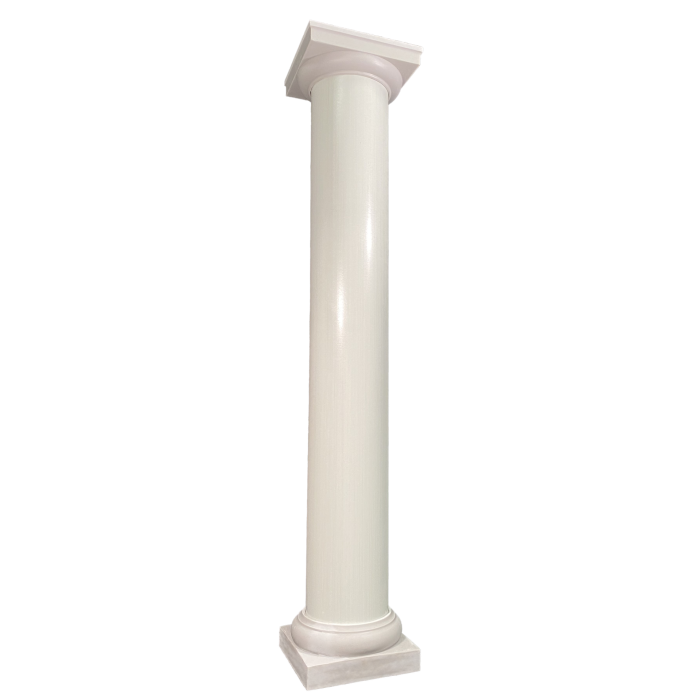

RoyaLite Pultruded Columns (load bearing)
| Column Width | Top/Bottom Shaft Width | Bead Width* | Average Wall Thickness* | Load-bearing Capacity* (lbs.) | Available Lengths(feet) |
|---|---|---|---|---|---|
| (A) & (B) | (C) | ||||
| 6” | 5-3/4” | 1-1/4” | 1/8” | 5000 | 4, 6, 8, 9, 10 |
| 8” | 7-3/4” | 1-1/4” | 1/8” | 6500 | 4, 6, 8, 9, 10, 12, 14, 16, 18 |
| 10” | 9-3/4” | 1-1/4” | 1/8” | 7000 | 4, 6, 8,9, 10, 12, 14, 16, 18 |
| 12” | 11-3/4” | 1-1/4” | 1/8” | 7500 | 4, 6, 8, 9, 10, 12, 14, 16, 18 |
Pultruded columns, though thin, are very robust as indicated by the load bearing capacity. In addition to these load bearing RoyaLite columns, all of the RoyaLite column covers in the first chart at the top can be assembled to bear some weight.
| Column Width | Inside Top Shaft Diameter | Largest Round Support | Largest Square Support |
|---|---|---|---|
| (S) | |||
| 6” | 5-1/8” | 4-5/8” | 4-5/8” |
| 8” | 7-1/8” | 6-5/8” | 6-5/8” |
| 10” | 9-1/8” | 8-5/8” | 8-5/8” |
| 12” | 11-1/8” | 10-5/8” | 10-5/8” |
Royalite pultruded load bearing columns are not recommended to be split but can be.
Select one of these decorative column capitals or bases from the drop down lists above.
Tuscan Capital
Rounded Tuscan Capital

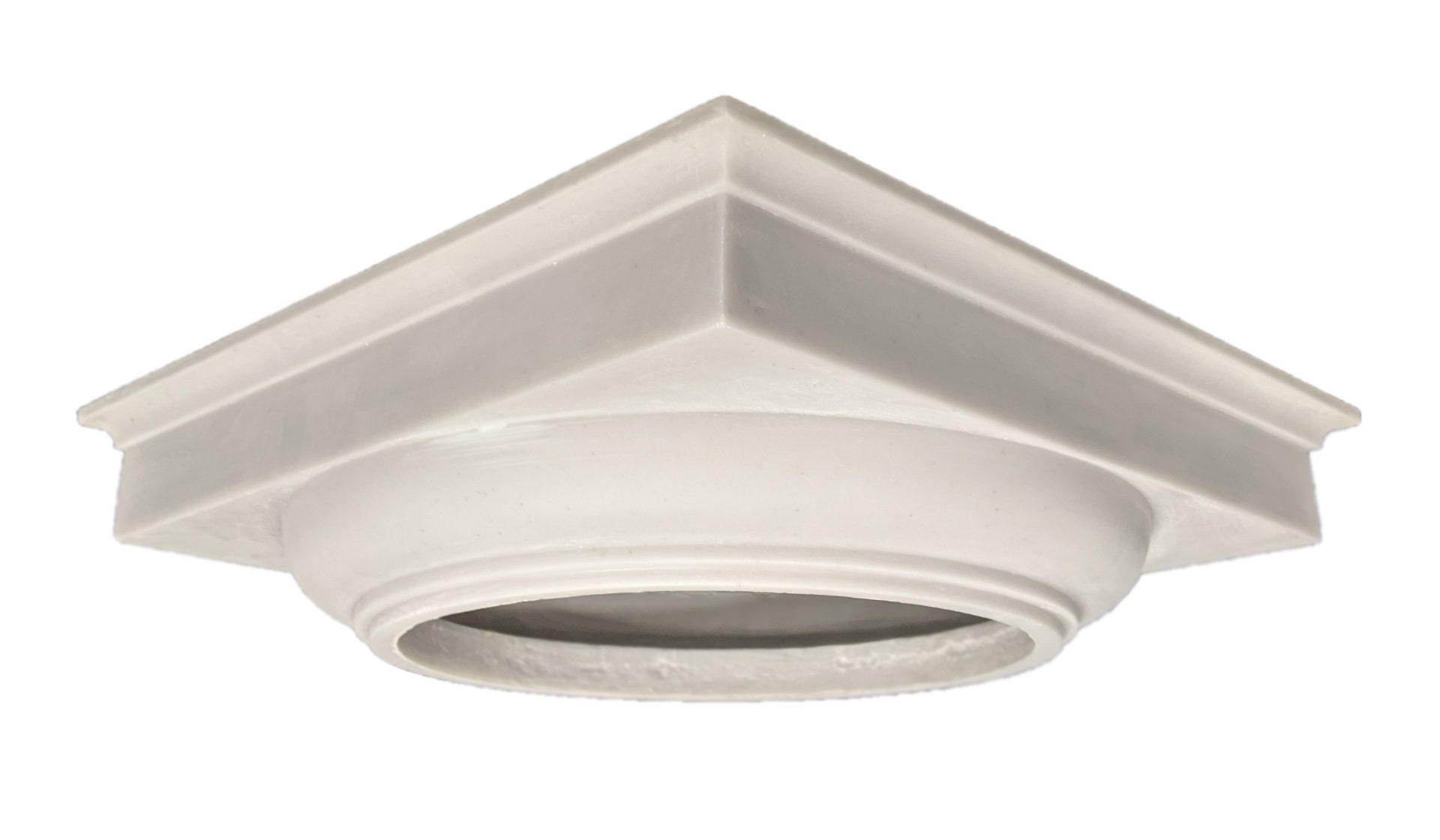

Doric
Roman Ionic
Scamozzi
Roman Corinthian
Temple of the Winds

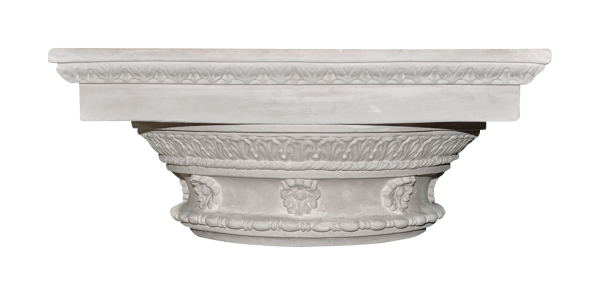

Roman Doric
Modern Composite
Greek Erechtheum
Greek Erechtheum with Necking

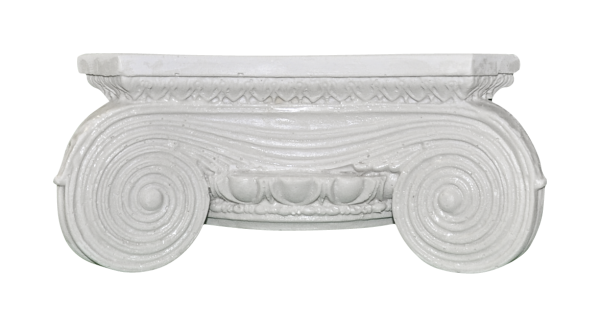

Greek Angular
Empire

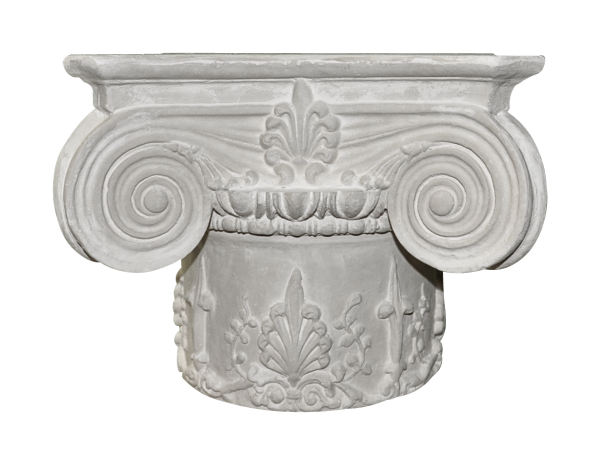

Empire with Necking
Tuscan Base

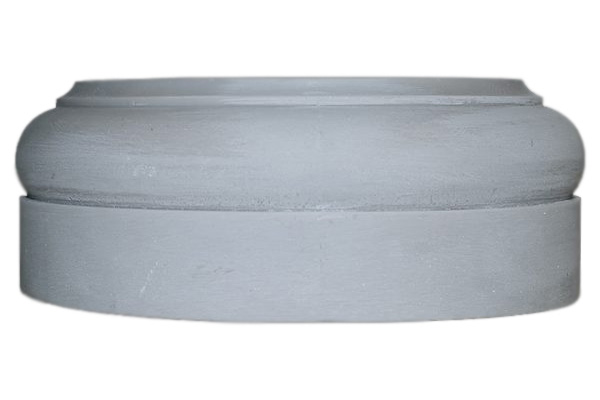

Rounded Plinth Tuscan Base

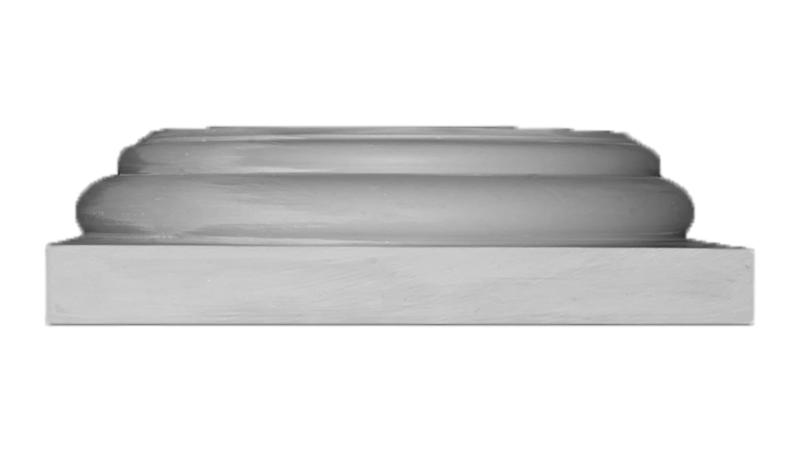

Doric Base
Attic Base
Rounded Plinth Attic Base
