Original price was: $353.22.$202.76Current price is: $202.76.
In stock
Description
These are an overrun, so we are passing the savings on to you! There are only 16 pieces available so get them while they’re here
Cap and Base not included, please see our capitals here, and our bases here.
We sell Royal Corinthian Columns. Royal Corinthian has over 25 years experience in the manufacture of industry specified Fiberglass columns/FRP columns, previously reserved only for large commercial or residential specification. Royal Corinthian is a leader in quality through reputation, providing a long lasting, sturdy option to the standard “boutique” variety columns available else ware. Crown-Molding.com is very pleased to be one of the few online retail stores permitted to offer the Royal Corinthian line.

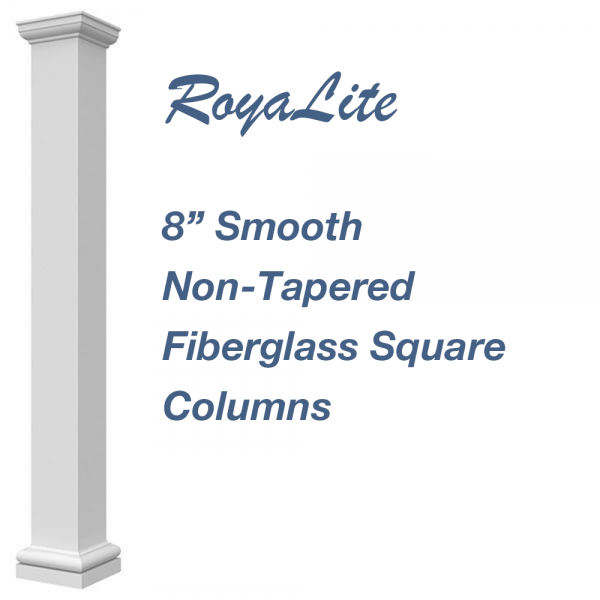

RoyaLite Columns
| Column Width | Top/Bottom Shaft Width | Bead Width* | Average Wall Thickness* | Available Lengths(feet) | |
|---|---|---|---|---|---|
| (A) & (B) | (C) | ||||
| 6” | 5-5/8” | 1-1/4” | 3/8” | 4,6, 8, 9, 10 | |
| 8” | 7-5/8” | 1-1/4” | 3/8” | 4,6,8,9,10,12,14,16,18 | |
| 10” | 9-5/8” | 1-1/4” | 3/8” | 4,6,8,9,10,12,14,16,18 | |
| 12” | 11-5/8” | 1-1/4” | 1/2” | 4,6,8,9,10,12,14,16,18 | |
| 14” | 13-5/8” | 1-9/16” | 1/2″ | 4,6,8,9,10,12,14,16,18,20 | |
| 16” | 15-5/8” | 1-3/4” | 5/8” | 4,6,8,9,10,12,14,16,18,20 | |
| 20” | 19-1/2” | 1-7/8” | 5/8” | 4,6,8,9,10,12,14,16,18,20 | |
| 24” | 24” | 1-15/16” | 5/8” | 4,6,8,9,10,12,14,16,18,24 |
*16″ and 24” Columns have an astragal and capital support ring that is part of the shaft. The astragal is 9″ and the support ring is 5-1/8″ from the top on the 16” column and the astragal is 14-5/16” and the support ring is 7-1/8” from the top on the 24” column. Astragal and or support ring can be removed.
Our Sizes Are Nominal
All installation information is of general nature; columns should be installed and secured according to standard construction practices and in compliance with local regulations. 2nd story balconies should not be attached directly to the side of any column.
**Reassembly kit includes: 1 tube of FRP Adhesive, 6 reassembly Straps, 4 metal joining clips with screws.
RoyaLite Pultruded Columns (load bearing)
| Column Width | Top/Bottom Shaft Width | Bead Width* | Average Wall Thickness* | Load-bearing Capacity* (lbs.) | Available Lengths(feet) |
|---|---|---|---|---|---|
| (A) & (B) | (C) | ||||
| 6” | 5-3/4” | 1-1/4” | 1/8” | 5000 | 4, 6, 8, 9, 10 |
| 8” | 7-3/4” | 1-1/4” | 1/8” | 6500 | 4, 6, 8, 9, 10, 12, 14, 16, 18 |
| 10” | 9-3/4” | 1-1/4” | 1/8” | 7000 | 4, 6, 8,9, 10, 12, 14, 16, 18 |
| 12” | 11-3/4” | 1-1/4” | 1/8” | 7500 | 4, 6, 8, 9, 10, 12, 14, 16, 18 |
Pultruded columns, though thin, are very robust as indicated by the load bearing capacity. In addition to these load bearing RoyaLite columns, all of the RoyaLite column covers in the first chart at the top can be assembled to bear some weight.
| Column Width | Inside Top Shaft Diameter | Largest Round Support | Largest Square Support |
|---|---|---|---|
| (S) | |||
| 6” | 5-1/8” | 4-5/8” | 4-5/8” |
| 8” | 7-1/8” | 6-5/8” | 6-5/8” |
| 10” | 9-1/8” | 8-5/8” | 8-5/8” |
| 12” | 11-1/8” | 10-5/8” | 10-5/8” |
Royalite pultruded load bearing columns are not recommended to be split but can be.
| Tuscan Cap | Tuscan Base | |||||
|---|---|---|---|---|---|---|
| Size | Width | Height | Weight (lbs.) | Width | Height | Weight (lbs.) |
| (D) | (E) | (F) | (G) | |||
| 6” | 8-1/4” | 2-3/16” | 1.5 | 7-7/8” | 3-1/4” | 4 |
| 8” | 10-7/8” | 3” | 2.5 | 10-1/2” | 4-1/4” | 6 |
| 10” | 13-9/16” | 3-3/4” | 7 | 13-5/16” | 5-3/8” | 12.5 |
| 12” | 17-3/8” | 4-1/8” | 19 | 16-1/8” | 6-1/4” | 31 |
| 14” | 18-3/16” | 4-5/16” | 23 | 18-5/16” | 7-9/16” | 40 |
| 16” | 20-5/8” | 5-5/8” | 28 | 20-9/16” | 9-1/2” | 49 |
| 20″ | 26-9/16” | 6-5/16” | 35 | 26-15/16” | 10-1/2” | 60 |
| 24″ | 31-15/16” | 7” | 40 | 32” | 13-1/4” | 70 |
Weights are based on cast materials. RoyaLite caps/bases are significantly lighter but very robust.
